Flow configurations

Configure quickintegration flow to enable monitoring, add custom tracking, define input and out schemas.

Supported features​

  1. Add flow description
  2. Enable monitoring
  3. Add tracking id
  4. Define input schema
  5. Define output schema
flow-configuration

Description​

Add a flow description to describe what flow service does.

description

Enable monitoring​

By selecting enable monitoring, user can monitor the application in monitoring UI.

enable-monitoring

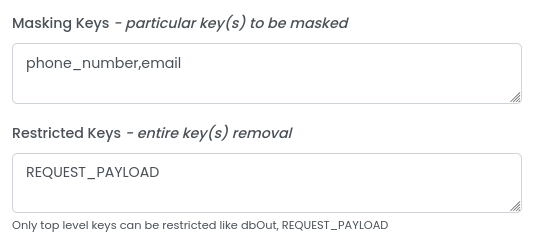

Add Masking keys​

  1. Mask values corresponding to a specified set of keys. The masked keys values will not be visible in the transaction.
  2. Multiple keys can be provided using comma as delimiter

Add restricted keys​

Restrict any top level keys which should not be visible to transaction.

Configuration​

note
  • Masking keys supports top level and nested keys
    • eg: REQUEST_PARAMS,email,phone_number
  • Restricted kets only support top level keys
    • eg: REQUEST_PARAMS,REQUEST_BODY
  1. Right click on the blank canvas
  2. Check enable monotoring
  3. Add masking keys or Restricted keys as per requirement
  4. Multiple keys can be added using comma delimiter without space in between.
  5. Click save

Transaction id​

Define custom transcation id for easy tracking of service requests.

tracking-id

Configuration​

note
  • Transaction id will replace the autogerated transcation id of the request
  1. Right click on the blank canvas
  2. Add the header key name which will be passed in the request headers
  3. Click save

Input schema​

Define input schemas for request params and request body

input

Configuration​

  1. Add request param key and its data type in Request Params section
  2. Click plus button to add multiple request params

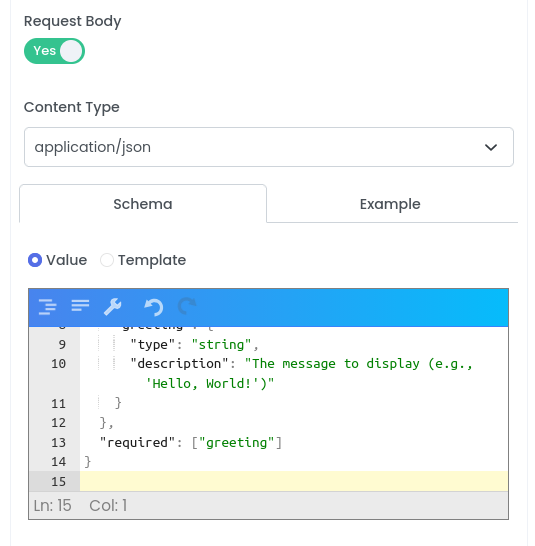

  3. Select Request Body radio button to add request body
    • Select value to directly input the schema
    • Select Template to upload the schema
    • Select Schema Type as XML or JSON or CSV or TEXT

Output schema​

Define output schemas like for flow response

output

Configuration​

  1. Select value to directly input the schema
  2. Select Template to upload the schema
  3. Select Schema Type as XML or JSON or CSV or TEXT
